Did I Make a Mistake in Buying a Lexus CT200h with a Camshaft Trouble Code?

It's the age-old problem: you purchase a pre-owned vehicle, and a glaring trouble code emerges soon after. In this case, we're delving into the world of Lexus with the CT200h and a notorious camshaft trouble code. Let's unravel the mystery behind it and see if I've landed myself a lemon or a potential diamond in the rough.

What's the Trouble?

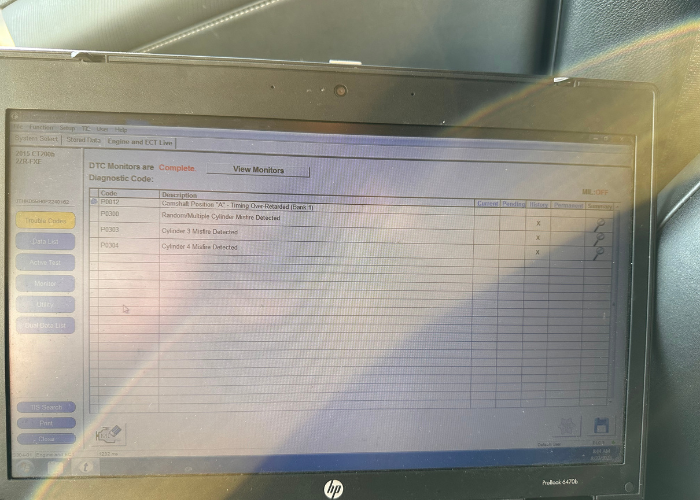

First, our star trouble code is P0012, which points to the "A" camshaft position—more simply, the intake camshaft—being over-retarded. In layman's terms, this indicates that the camshaft is lagging behind where it should be about the crankshaft's position. While this sounds serious and can be, it also has a range of causes, some simpler to address than others.

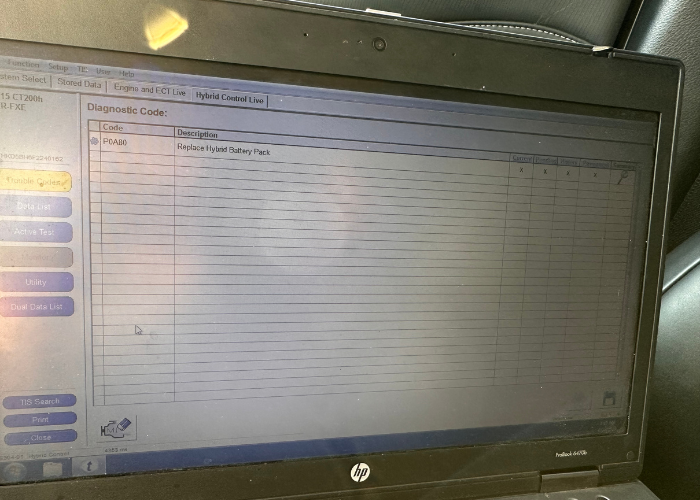

There are also other trouble codes such as P0304, P0302, P3000 and the famous replace hybrid battery pack P0A80. But We have to figure out this camshaft code issue first before we can work on the others. This will help ensure we take the correct repair action and not just turn on the parts cannon.

Tracing the Culprits:

Oil Flow Issues: The engine's variable camshaft timing system thrives on proper oil flow. Low or dirty oil or clogged passages can derail the camshaft actuator's function.

Oil Control Valve (OCV) Faults: Positioned to control oil flow to the camshaft actuator, a malfunctioning OCV can prompt incorrect camshaft positioning.

Timing Chain: A misaligned or worn-out timing chain can be the unseen troublemaker, causing the camshaft to be misaligned.

Camshaft Phaser Issues: Though it's less frequent, a faulty camshaft phaser, which adjusts its position, can be at the root of the P0012 code.

Sensor Malfunctions: Camshaft or crankshaft position sensors are critical in relaying positional information. Their failure, while less common, could trigger the trouble code.

ECM Complications: Our least suspected perpetrator, a faulty Engine Control Module, though rare, could be the cause.

The Plot Thickens...

Now, adding a layer of complexity to our mystery, the car was handed over to a workshop, which promptly concluded that a complete engine replacement was in order. It is a rather hefty solution, considering the vehicle had an issue-free two-year stint with the previous owner.

Moreover, a visual inspection reveals that someone ventured into the engine's heart, removing and resealing the timing cover. This nudges us towards scrutinizing the engine timing, a potentially overlooked yet pivotal element.

Lemon or Diamond?

Here's where we stand: The evidence hints at possible timing issues, which, if confirmed, might explain the sudden onset of the problem. Many potential causes listed above don't necessarily warrant an entire engine replacement.

In cars, quick judgments can sometimes lead to needless expenses. Replacing an entire engine based on a single trouble code, especially one with varied root causes, seems premature. It's crucial to remember that not all automotive ailments require the vehicular equivalent of open-heart surgery. Sometimes, it's just about adjusting the rhythm.

In Conclusion...

As the CT200h's journey unfolds, the quest for answers continues. While we've shed light on the potential culprits, a deeper investigation is on the horizon. The possibility of an engine replacement looms, but it's far from the definitive verdict. So, did I buy a total lemon? Early indications lean towards 'not necessarily.' Stay tuned, as our next chapter will dive into the nitty-gritty of diagnostics and solutions. The journey of discovery is far from over, and I'm optimistic about a resolution that doesn't involve replacing the engine.
